30 kWh Battery
HS-LD30KW
30,720 Wh5-Year Battery Warranty

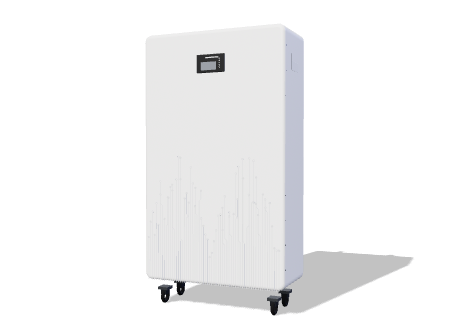

A tall white floor cabinet on castors, chest height on an adult — visibly and unmistakably larger than the 15 kWh unit.
Let’s figure out your power needs together — free
Taken apart, to scale
Every part below is placed from the same measured dimensions as the specification sheet. Scroll to take the unit apart and put it back together.
-
01

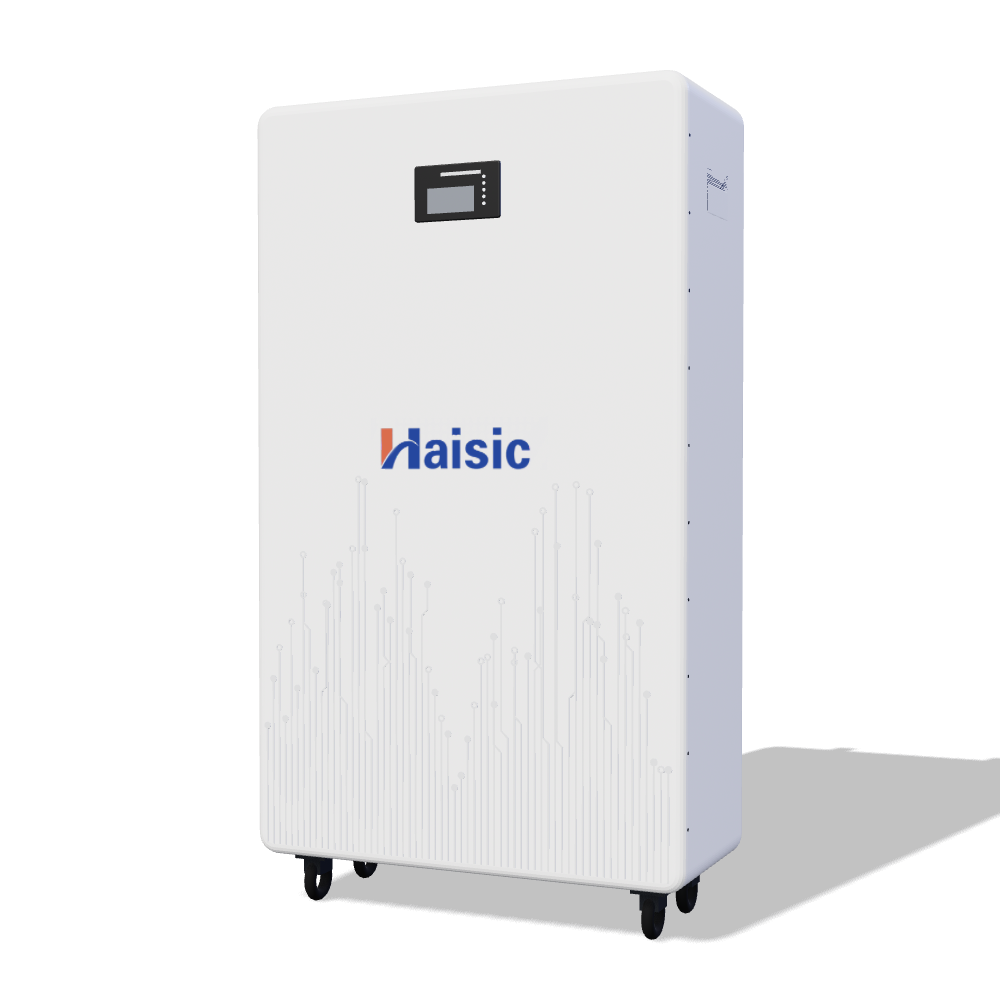

The unit, whole
The cabinet as it ships, standing square. Nothing has moved yet.
-
02
Measured, not drawn
The model is built from the published millimetres, so what you are turning is the real size and proportion of the product.
-
03
Brought in close
The view pushes in to macro range, near enough to read the front face and its controls.
-
04
Apart
Each sub-assembly travels out along its own axis — the display, the printed mark, the side pocket and the feet separate in the order the unit is put together.
-
05
Held open
The unit sits open while you read it. The specification below is the same source the geometry is built from.
-
06
Back together
Everything returns to its seat, and the cabinet closes.
Specifications
| Energy | 30,720 Wh |
|---|---|
| Nominal voltage | 51.2 V |
| Capacity | 600 Ah |
| Max discharge | 200 A |
| Max charge | 200 A |
| Cycle life | >6000 cycles @ 0.5C, 25℃, 80% DOD |
| Ingress protection | NOT STATED |
| Weight | 200 kg |
| Dimensions (W×H×D) | 680 × 1130 × 300 mm |
| Certificates | CE, FCC, RoHs, MSDS, UN38.3 |
What it pairs with
A battery and an inverter can only be paired inside the same voltage family.
