4.2 kVA Inverter
HS-PV5000-24
On the wall, slightly smaller than the 6 kVA.
Let’s figure out your power needs together — free
Taken apart, to scale
Every part below is placed from the same measured dimensions as the specification sheet. Scroll to take the unit apart and put it back together.
-
01

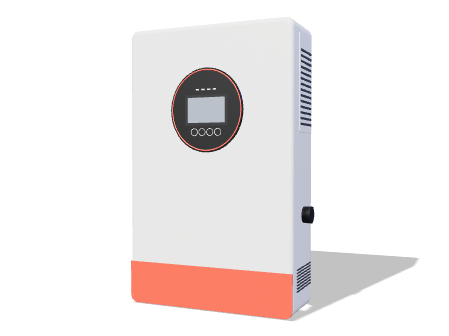

The unit, whole
The cabinet as it ships, standing square. Nothing has moved yet.
-
02
Measured, not drawn
The model is built from the published millimetres, so what you are turning is the real size and proportion of the product.
-
03
Brought in close
The view pushes in to macro range, near enough to read the front face and its controls.
-
04
Apart
Each sub-assembly travels out along its own axis — the display, the printed mark, the side pocket and the feet separate in the order the unit is put together.
-
05
Held open
The unit sits open while you read it. The specification below is the same source the geometry is built from.
-
06
Back together
Everything returns to its seat, and the cabinet closes.
Specifications
| Output power | 4.2 kW |
|---|---|
| Surge | 5.7 kVA |
| Battery voltage | 24 V |
| Max efficiency | 92.7 % @ 24 VDC |
| Ingress protection | IP20 |
| Weight | 8 kg |
| Parallel units | NOT STATED |
| Topology | Single Phase Off-grid Inverter |
| Dimensions (W×H×D) | 306 × 490 × 115 mm |
What it pairs with
A battery and an inverter can only be paired inside the same voltage family.
